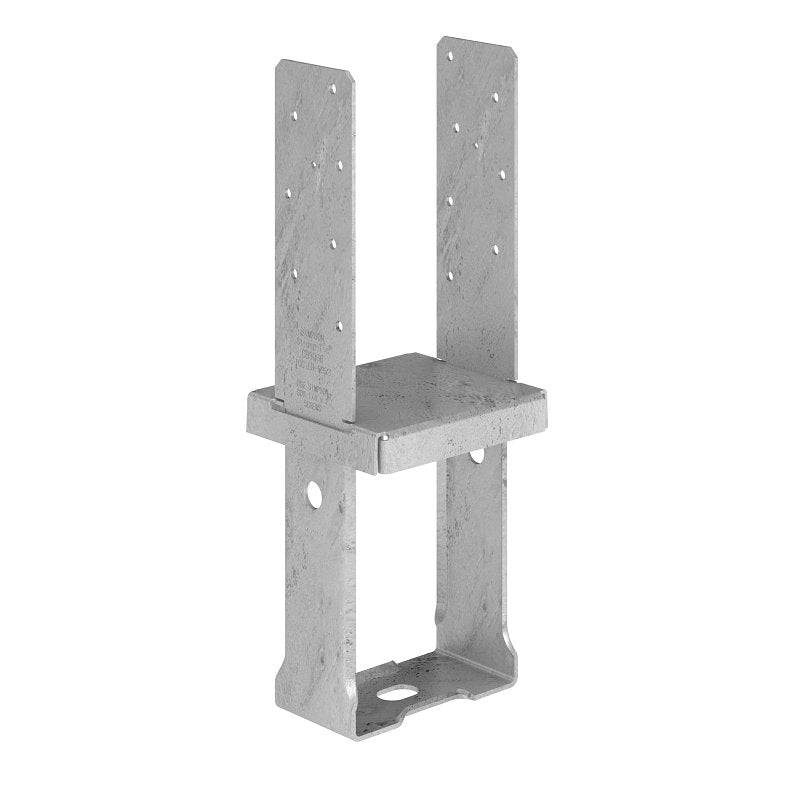

Simpson Strong-Tie CBSQ Series CBSQ66-SDS2 Column Base, 6 x 6 in Post, Steel, Galvanized, Pack of 6
$327.01
$376.14
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie CBSQ Series CBSQ66-SDS2 Column Base, 6 x 6 in Post, Steel, Galvanized, Pack of 6 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Features
- Uses Strong-Drive screws, which allow for fast installation, reduced reveal and high-capacity
- Provides a 1 in stand-off between post and concrete that meets code requirements
- Embeds in wet concrete at time of pour
- The stand-off base reduces the potential for decay at post and column ends
- Shipped with base plate assembled
- Galvanized (G90) for extra corrosion resistance
Description
Description
The CBSQ is designed to be the interface between columns and their foundations. The main function of this column base is to link the column to the concrete footing surface and thereby transmit the structure's stresses to the foundation. The CBSQ uses Strong-Drive SDS heavy-duty connector screws (included), which allow for fast installation and reduced reveal and provide a greater net section area of the column than bolts.
Additional Information
Additional Information
- Finish: Galvanized
- Includes: (14) 1/4 x 2 in SDS Screws
- Material: Steel
- Post Size: 6 x 6 in
- Weight Capacity: 14420 lb Down 3060 lb Cracked Uplift 4375 Uncracked
- Width: 5-1/2
