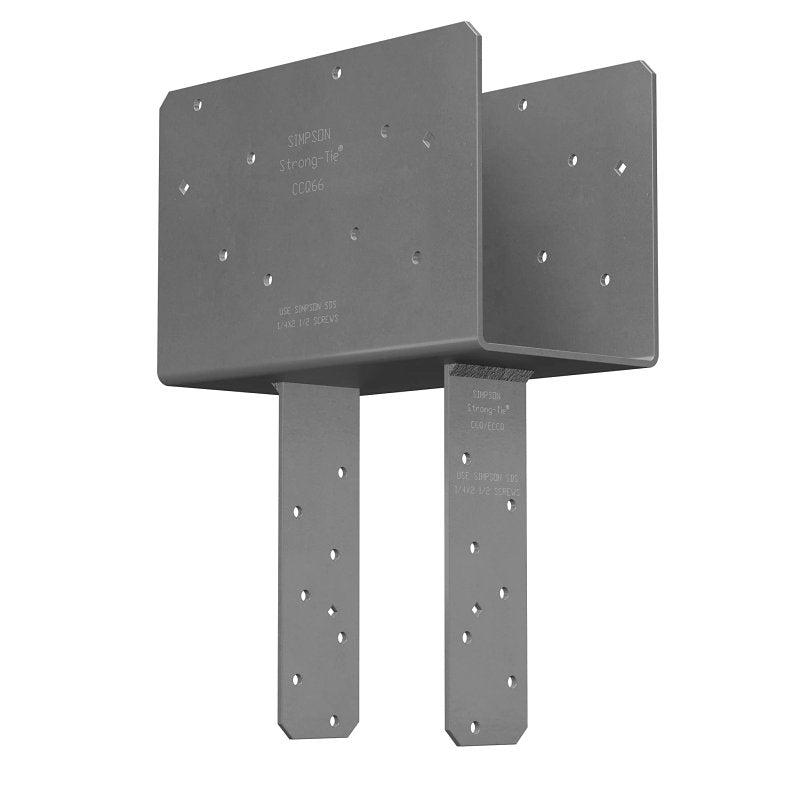

Simpson Strong-Tie CCQ CCQ66SDS2.5 Column Cap, 5-1/2 in Post/Joist, Steel, Pack of 3
$320.68
$368.85
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie CCQ CCQ66SDS2.5 Column Cap, 5-1/2 in Post/Joist, Steel, Pack of 3 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Simpson Strong-Tie CCQ CCQ66SDS2.5 Column Cap, 5-1/2 in Post/Joist,...
$320.68
$368.85
Unit price
/
Unavailable
Features
- The SDS screws provide a lower profile than standard through bolts
- Certified welds for confidence in strength and loading
- Uplift loads have been increased for earthquake or wind loading
- Diamond holes for temporary fastening
- Simpson Strong-Tie gray paint finish
Description
Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive SDS heavy-duty connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional Information
Additional Information
- Color: Gray
- Fastener Type: Screw
- Includes: (30) 1/4 x 2-1/2 in SDS Screws
- Length: 11
- Material: Steel
- Post/Joist Size: 5-1/2 in
- Weight Capacity: 30250 lb Down 6785 lb Uplift
- Width: 5-1/2
