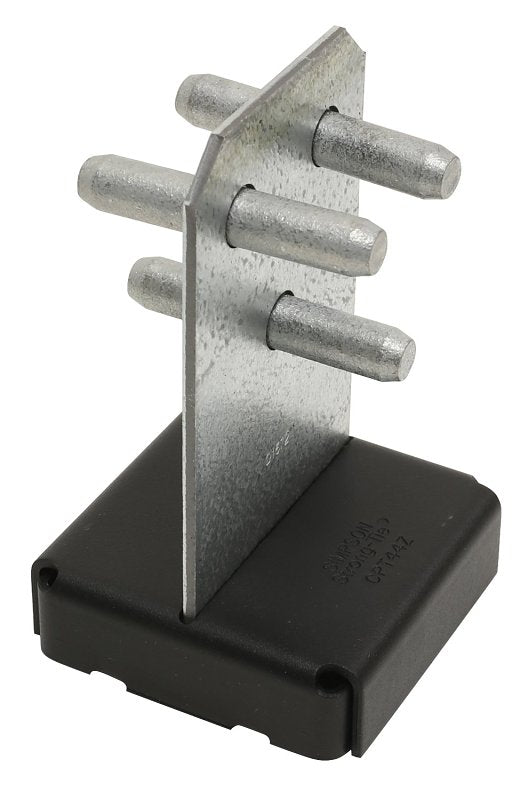

Simpson Strong-Tie CPTZ CPT44Z Concealed Post Base, 4 x 4 in Post, 12 ga Gauge, Steel, ZMAX, Pack of 10
$440.25
$506.50
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie CPTZ CPT44Z Concealed Post Base, 4 x 4 in Post, 12 ga Gauge, Steel, ZMAX, Pack of 10 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Simpson Strong-Tie CPTZ CPT44Z Concealed Post Base, 4 x 4 in Post, ...
$440.25
$506.50
Unit price
/
Unavailable
Features
- The 1 in stand-off height is code-required when supporting permanent structures that are exposed to weather or water splash, or in basements
- The stand-off reduces the potential for decay at post or column ends
- The anchorage for the CPTZ can be either cast-in-place or retrofit with adhesive or mechanical anchors
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- The CPTZ is tested and load-rated for uplift, download and lateral load
- Simpson Strong-Tie saves installers time by providing all the necessary components to make the post connection in one box (anchors not included)
Description
Description
The CPTZ concealed post-base provides a clean, concealed look while providing a 1 in stand-off height above concrete. The 1 in stand-off reduces the potential for decay at the post-end and satisfies code requirements for posts that are exposed to weather, water splash or in basements. It is part of a system of concealed connectors that includes the CBTZ and CJT.
Additional Information
Additional Information
- Finish: ZMAX
- Length: 3-1/2
- Material: Steel
- Material Gauge: 12 ga
- Minimum Embedment Depth: 2-1/4 in
- Post Size: 4 x 4 in
- Weight Capacity: 11455 lb Down 3035 to 3240 lb Uplift
- Width: 3-1/2
