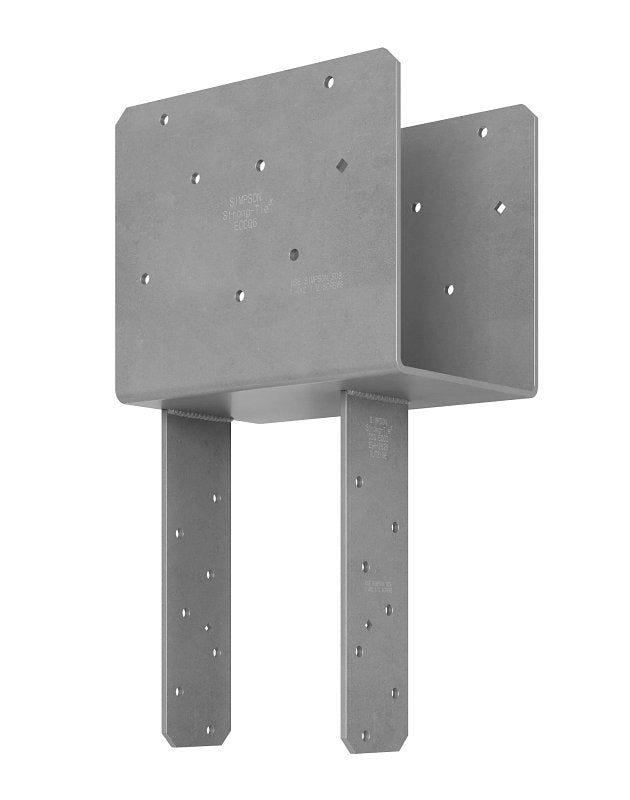

Simpson Strong-Tie ECCQ ECCQ66SDS2.5 Column Cap, 5-1/2 in Post/Joist, Steel, Pack of 3
$306.07
$352.05
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie ECCQ ECCQ66SDS2.5 Column Cap, 5-1/2 in Post/Joist, Steel, Pack of 3 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Simpson Strong-Tie ECCQ ECCQ66SDS2.5 Column Cap, 5-1/2 in Post/Jois...
$306.07
$352.05
Unit price
/
Unavailable
Features
- Uses Simpson Strong-Tie Strong-Drive SDS screws to provide faster installation and provides a greater net section area of the column compared to bolts
- SDS screws provide for a lower profile compared to standard through bolts
- Simpson Strong-Tie gray paint finish
- The SDS screws provide a lower profile than standard through bolts
- Certified welds for confidence in strength and loading
- Uplift loads have been increased for earthquake or wind loading
Description
Description
The ECCQ is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The ECCQ uses Strong-Drive SDS heavy-duty connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional Information
Additional Information
- Color: Gray
- Fastener Type: Screw
- Length: 8-1/2
- Material: Steel
- Post/Joist Size: 5-1/2 in
- Width: 5-1/2
