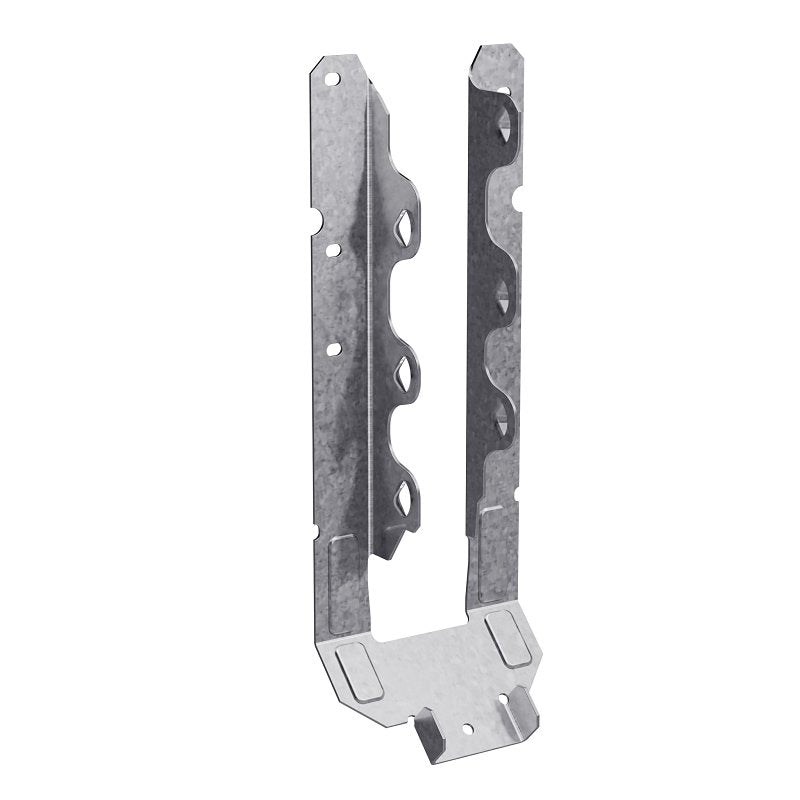

Simpson Strong-Tie LRUZ LRU210Z Rafter Hanger, 8-3/16 in H, 1-15/16 in D, 1-9/16 in W, Steel, ZMAX, Face Mounting, Pack of 25
$252.95
$291.25
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie LRUZ LRU210Z Rafter Hanger, 8-3/16 in H, 1-15/16 in D, 1-9/16 in W, Steel, ZMAX, Face Mounting, Pack of 25 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Simpson Strong-Tie LRUZ LRU210Z Rafter Hanger, 8-3/16 in H, 1-15/16...
$252.95
$291.25
Unit price
/
Unavailable
Features
- The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
- Slopes up or down to 45 deg
- For added versatility, the fasteners on the face of the hanger are placed high, enabling the bottom of the rafter-to hang below the ridge beam
- Made from 18 ga steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Description
Description
The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to ridge connections. Used with solid sawn rafters, the LRUZ's unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.
Additional Information
Additional Information
- Depth: 1-15/16 in
- Fastener Type: Screw
- Finish: ZMAX
- Material: Steel
- Mounting Type: Face
- Width: 1-9/16
