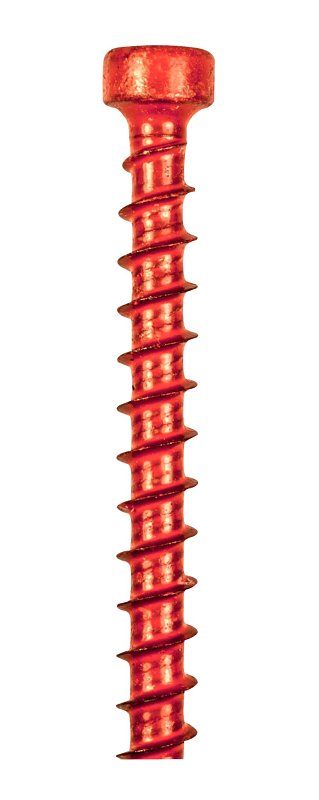

Simpson Strong-Tie Strong-Drive SDWC SDWC15600B-KT Truss Screw Kit, 6 in L, Cap Head, 6-Lobe Drive, Type-17 Point
$313.28
$360.35
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie Strong-Drive SDWC SDWC15600B-KT Truss Screw Kit, 6 in L, Cap Head, 6-Lobe Drive, Type-17 Point is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Simpson Strong-Tie Strong-Drive SDWC SDWC15600B-KT Truss Screw Kit,...
$313.28
$360.35
Unit price
/
Unavailable
Features
- Cap-style head countersinks fully into the double-top-plate to avoid interference with drywall or finish trades
- Wide tolerance on installation angle makes it easy to install the SDWC correctly
- Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
- Fastening can be performed before or after exterior sheathing is applied for added flexibility
- Type-17 point for faster starts and easier driving
- Orange color for easy inspection
- Matched-tolerance driver bit (included) engages fastener head securely to allow one-handed driving
Description
Description
The Strong-Drive SDWC truss screw provides a stud-to-bottom plate or stud-to-top-plate connection as well as fastening trusses and rafters to top-plates. The full-threaded shank engages the entire length of the fastener, providing a secure connection. The SDWC is tested in accordance with ICC-ES AC233 (screw) and AC13 (wall assembly and roof-to-wall assembly) for uplift and lateral loads between wall plates and vertical wall framing and between the top-plate and the roof rafters or trusses.
Additional Information
Additional Information
- Applicable Materials: Wood
- Color: Orange
- Drive Size: T30
- Drive Type: 6-Lobe
- Finish: Zinc
- Head Type: Cap
- Includes: (500) Strong-Drive SDWC Screws (2) Matched-Tolerance Driver Bits and (2) Metal Installation Guide Tools
- Length: 6
- Material: Steel
- Package Quantity: 500 PK
- Point Type: Type-17
- Thread Length: 5-3/4 in
