Simpson Strong-Tie | Our Item #:
DORG7970288

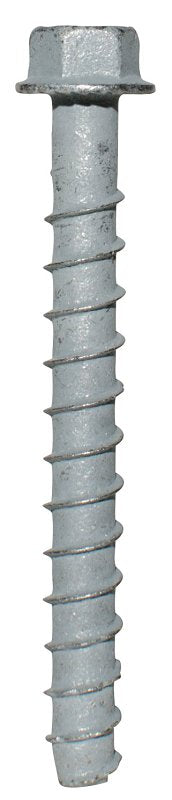

Simpson Strong-Tie Titen HD THD37400HF1 Heavy-Duty Screw Anchor, 3/8 in Dia, 4 in L, Carbon Steel, Zinc, Pack of 30
$95.35
$95.70
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie Titen HD THD37400HF1 Heavy-Duty Screw Anchor, 3/8 in Dia, 4 in L, Carbon Steel, Zinc, Pack of 30 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Simpson Strong-Tie Titen HD THD37400HF1 Heavy-Duty Screw Anchor, 3/...
$95.35
$95.70
Unit price
/
Unavailable
Features
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Designed to install using standard-sized ANSI tolerance drill bits
- Hex washer head requires no separate washer and provides a clean installed appearance
- Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
- Zinc-plated carbon steel anchor can be used for temporary exterior applications
Description
Description
A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post-bases, seating and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated. The stainless steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present.
Additional Information
Additional Information
- Color: Gray
- Diameter: 3/8 in
- Drill Size: 3/8 in
- Drive Type: Hex
- Finish: Zinc
- Fixture Thickness: 1/2 to 9/16 in
- Head Type: Hex
- Length: 4
- Material: Carbon Steel
- Minimum Clearance: 1/2 in
- Minimum Concrete Thickness: 4 to 5 in
- Minimum Embedment Depth: 2-1/2 to 3-1/4 in
- Shear Strength: 4460 lb
- Tensile Strength: 10890 lb
