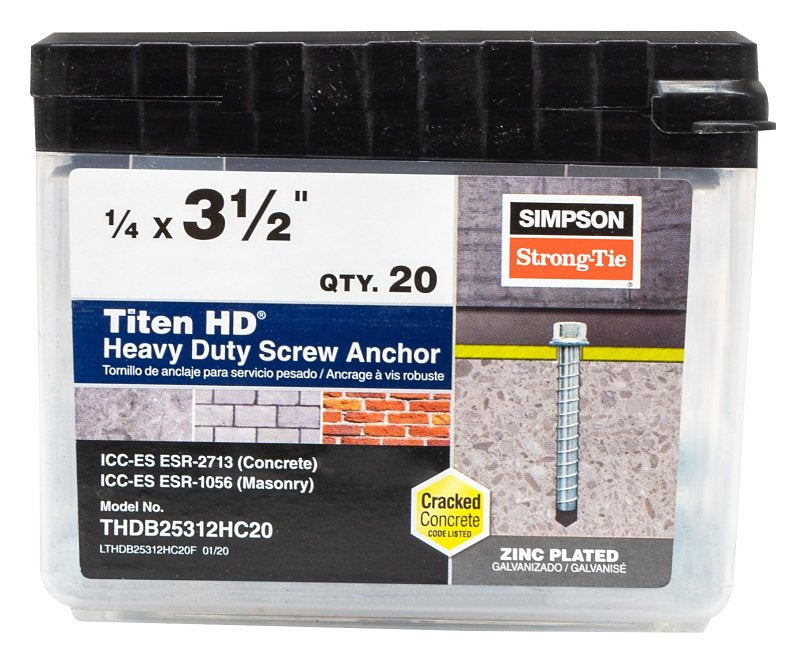

Simpson Strong-Tie Titen HD THDB25312HC20 Heavy-Duty Screw Anchor, 1/4 in Dia, 3-1/2 in L, Carbon Steel, Zinc Plated
$25.42
$29.29
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie Titen HD THDB25312HC20 Heavy-Duty Screw Anchor, 1/4 in Dia, 3-1/2 in L, Carbon Steel, Zinc Plated is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Simpson Strong-Tie Titen HD THDB25312HC20 Heavy-Duty Screw Anchor, ...
$25.42
$29.29
Unit price
/
Unavailable
Features
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Hex washer head requires no separate washer and provides a clean installed appearance
- Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
- Zinc plated carbon steel anchor can be used for temporary exterior applications
- Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
Description
Description
A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.
Additional Information
Additional Information
- Color: Silver
- Diameter: 1/4 in
- Drill Size: 1/4 in
- Drive Type: 6-Lobe
- Finish: Zinc Plated
- Head Type: Hex
- Length: 3-1/2
- Material: Carbon Steel
- Minimum Concrete Thickness: 3-1/4 to 3-1/2 in
- Minimum Embedment Depth: 2-1/2 in
- Shear Strength: 1695 lb
- Tensile Strength: 125000 psi
- Thread Length: 3-1/8 in
