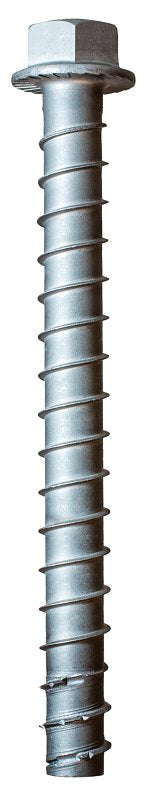

Simpson Strong-Tie Titen HD THDB62600H4SSF1 Heavy-Duty Screw Anchor, 5/8 in Dia, 6 in L, Stainless Steel, Pack of 10
$181.65
$209.50
Unit price
/
Unavailable
Shipping calculated at checkout.
Simpson Strong-Tie Titen HD THDB62600H4SSF1 Heavy-Duty Screw Anchor, 5/8 in Dia, 6 in L, Stainless Steel, Pack of 10 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Simpson Strong-Tie Titen HD THDB62600H4SSF1 Heavy-Duty Screw Anchor...
$181.65
$209.50
Unit price
/
Unavailable
Features
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Hex washer head requires no separate washer and provides a clean installed appearance
- The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
- Made from Type 304 stainless steel
- Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
Description
Description
The Titen HD stainless-steel screw anchor for concrete and masonry is ideal for when the job calls for fast and efficient installation in multiple types of environments. The Titen HD stainless steel is a state-of-the-art anchor solution that combines the long lasting corrosion-resistance of Type 300 Series stainless steel with the undercutting ability of heat-treated carbon-steel cutting threads.
Additional Information
Additional Information
- Color: Silver
- Diameter: 5/8 in
- Drill Size: 5/8 in
- Drive Type: 6-Lobe
- Finish: Zinc Plated
- Head Type: Hex
- Length: 6
- Material: Stainless Steel
- Minimum Concrete Thickness: 6 to 8-1/2 in
- Minimum Embedment Depth: 4-1/2 in
- Shear Strength: 8000 lb
- Tensile Strength: 110000 psi
- Thread Length: 5-1/2 in
