Smv Industries  |  Our Item #: DORG0382580  |  UPC: 012947008551

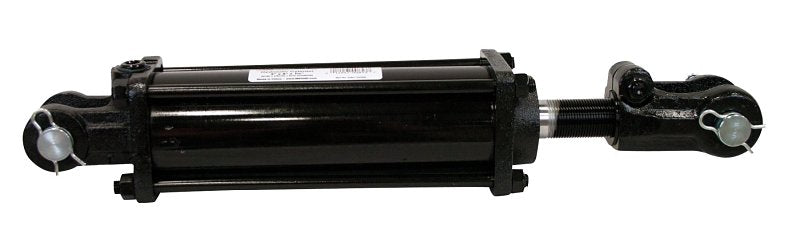

SMV Industries 4X8 ASAE Hydraulic Cylinder, ASAE, Double Acting, 8 in L Stroke, 4 in Bore, 1-1/4 in Dia Rod

$205.33 $236.19
Shipping calculated at checkout.

Delivery and Shipping

Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.

Features

  • Bore - piston diameter inside the cylinder tube, the larger bore equals greater lifting force
  • Rod diameter - diameter of the piston or rod, larger diameter equals greater lifting force
  • Stroke - cylinder travel meaning measured dimensions of the extended length of the rod minus the retracted length (measured center pin to center pin)
  • Clevis - most common end type, consisting of two, one on each end, with holes drilled for pins to go thru
  • Tie rod - most common in agricultural applications, tie rods are 4 long, threaded bolts, running the length of the cylinder, to provide extra stability
  • Dual (or double) acting - cylinder works under pressure in a pulling or pushing function
  • O-ring static seal and piston seal is 2 back up rings plus O-ring
  • Rod end cap - 1 NPT port, base end cap - 2 NPT ports

Description
SMV Industries Hydraulic Cylinder, ASAE, Double Acting, Bore Size: 4 in, Rod Diameter: 1-1/4 in, 2500 psi, Stroke Length: 8 in, Retracted Length: 20-1/4 in, Black

Additional Information

  • Bore Size: 4 in
  • Color: Black
  • Pressure Rating: 2500 psi
  • Retracted Length: 20-1/4 in
  • Rod Diameter: 1-1/4 in
  • Stroke Length: 8 in
  • Type: ASAE Double Acting
