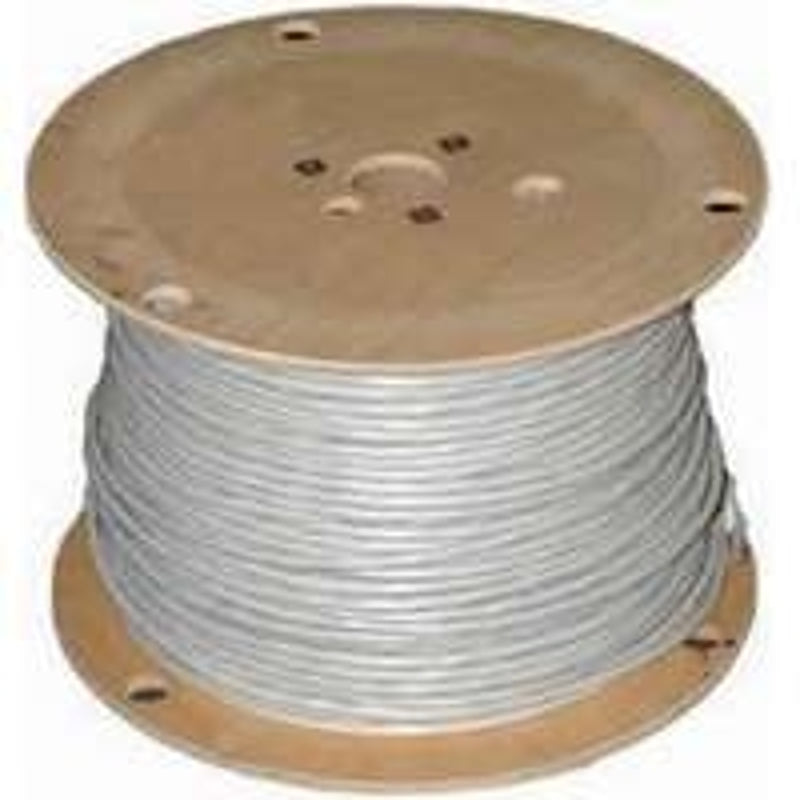

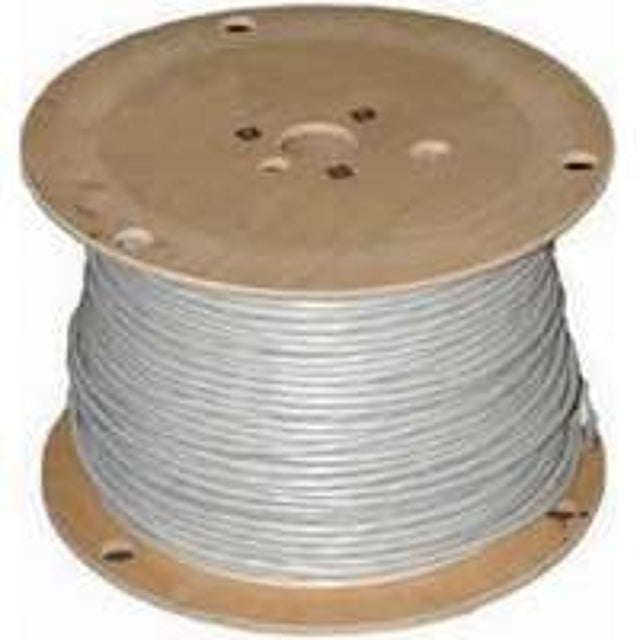

Southwire 63946872 Sheathed Cable, 14 AWG Wire, 3-Conductor, 300 ft L, Copper Conductor, PVC Insulation, Nylon Sheath

Annealed (soft) copper conductor cable, with a ground wire, primarily used in residential wiring as branch circuits for outlets, switches and other loads. May be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90 deg C (with ampacity limited to that for 60 deg C conductors) as specified in the National Electrical Code 1. May be run in air voids of masonry block or tile walls where such walls are not subject to excessive moisture or dampness. Voltage rating for NM-B cable is 600 V. Meets or exceeds UL Standard 83, UL Standard 719, Federal Specification A-A-59544 and requirements of the National Electrical Code.
Unit: FT
UPC: 032886188893
Model Number: 63946972

• Conductor Insulation: PVC
• Conductor Material: Copper
• Current Rating: 15 A
• Length: 300 in
• Number of Conductors: 3
• Operating Temperature: 90 deg C
• Sheath Color: Blue
• Sheath Material: Nylon
• Strands per Conductor: 1
• Type: NM-B
• Voltage Rating: 600 V
• Wire Size: 14 AWG
