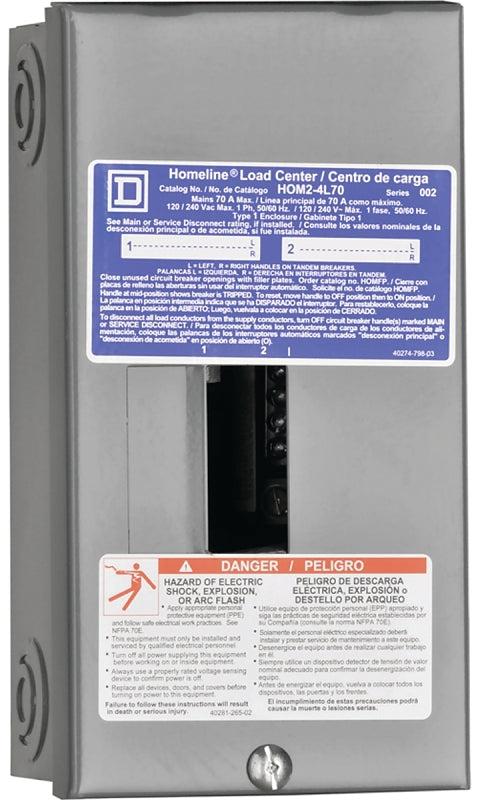

Square D Homeline HOM24L70SCP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 1 Enclosure, Plug Mounting
$25.59
$29.49
Unit price
/
Unavailable
Shipping calculated at checkout.
Square D Homeline HOM24L70SCP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 1 Enclosure, Plug Mounting is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Square D Homeline HOM24L70SCP Load Center, 70 A, 2 -Space, 4 -Circu...
$25.59
$29.49
Unit price
/
Unavailable
Features
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Surface mount device cover without a door
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Description
Description
Main lug indoor load center, 70 A, 2 space/4 circuits. Maximum SCCR of 10,000 and a maximum load of 240 V. NEMA type 1 enclosure. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 12 to 3 14 to 4 AWG
- Color: Gray
- Cover/Lid Type: Surface
- Current Rating: 70 A
- Enclosure Type: NEMA 1
- Finish: Baked Enamel
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Circuits: 4
- Number of Phases: 1
- Number Of Spaces: 2
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
