Square D | Our Item #:
DORG6395131
13% off

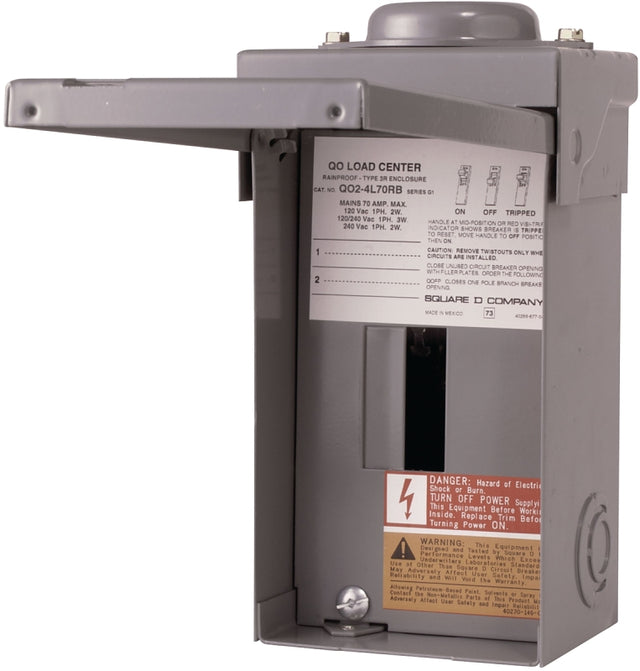

Square D QO QO24L70RBCP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 3R Enclosure, Plug Mounting, Gray
$57.80
$66.55
Unit price
/
Unavailable
Shipping calculated at checkout.
Square D QO QO24L70RBCP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 3R Enclosure, Plug Mounting, Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Square D QO QO24L70RBCP Load Center, 70 A, 2 -Space, 4 -Circuit, Ma...
$57.80
$66.55
Unit price
/
Unavailable
Features
- Indoor and outdoor versions
- Separate flush or surface mount covers
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
- Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Combination slot/square-drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square-head drivers
Description
Description
Main lug indoor load center, 70 A, 2 space/4 circuits. Intended for overhead or underground feed. 1-1/4 in maximum knockouts in the top and bottom end walls. NEMA 3R enclosure for outdoor use with a factory included cover. Copper bus for conductivity. UL listed.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 12 to 3 14 to 4 AWG
- Color: Gray
- Cover/Lid Type: Surface
- Current Rating: 70 A
- Enclosure Type: NEMA 3R
- Finish: Baked Enamel
- Interrupt Rating: 65 kA
- Mounting Type: Plug
- Number of Circuits: 4
- Number of Phases: 1
- Number Of Spaces: 2
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
