Square D | Our Item #:
DORG6476022
13% off

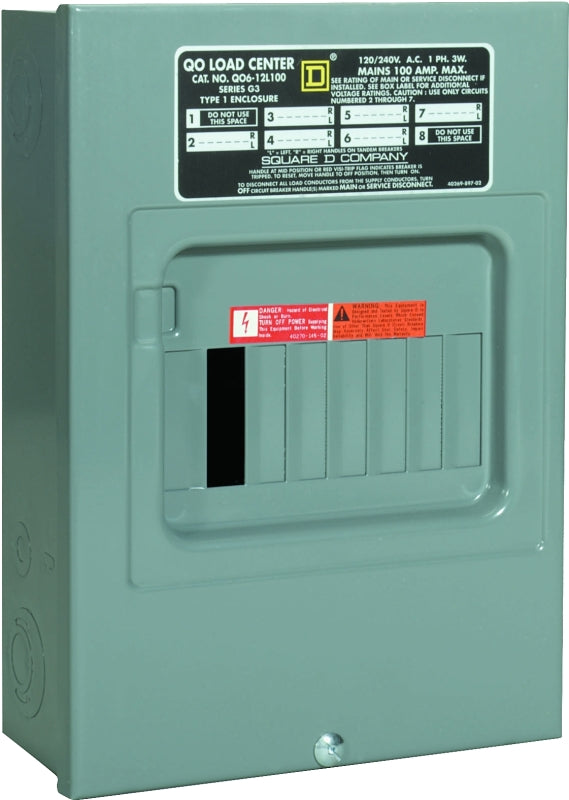

Square D QO QO612L100SCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 1 Enclosure, Plug Mounting
$36.19
$41.69
Unit price
/
Unavailable
Shipping calculated at checkout.
Square D QO QO612L100SCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 1 Enclosure, Plug Mounting is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Square D QO QO612L100SCP Load Center, 100 A, 6 -Space, 12 -Circuit,...
$36.19
$41.69
Unit price
/
Unavailable
Features
- Indoor and outdoor versions
- Separate flush or surface mount covers
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
- Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Combination slot/square-drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square-head drivers
Description
Description
Main lug indoor load center, 100 A, 6 space/12 circuits. 1-1/2 in maximum knockouts in the top and bottom end walls for overhead or underground feed. NEMA type 1 for indoor use. Steel enclosure. Single-phase, solid neutral. UL listed.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 8 to 1 AWG
- Color: Gray
- Cover/Lid Type: Surface
- Current Rating: 100 A
- Enclosure Type: NEMA 1
- Finish: Baked Enamel
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Circuits: 12
- Number of Phases: 1
- Number Of Spaces: 6
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
