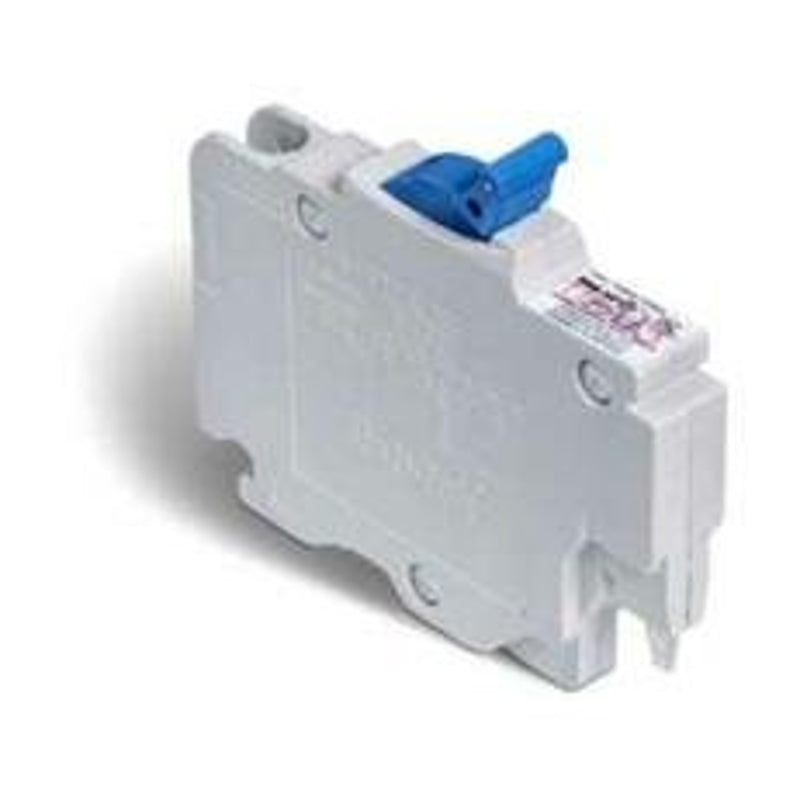

Square D Stab-lok NC015CP Circuit Breaker, Mini, Type NC, 15 A, 1 -Pole, 120 V, Plug Mounting, White
$45.41
$52.29
Unit price
/
Unavailable
Shipping calculated at checkout.
Square D Stab-lok NC015CP Circuit Breaker, Mini, Type NC, 15 A, 1 -Pole, 120 V, Plug Mounting, White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Square D Stab-lok NC015CP Circuit Breaker, Mini, Type NC, 15 A, 1 -...
$45.41
$52.29
Unit price
/
Unavailable
Features
- Provides overload and short circuit protection
- Color-coded handle identification is quick and easy with separate colors representing different ampere ratings
- Type NC with Robertson/slot screws
- Thermal magnetic trip protection
- Exclusive line side stab connection
- Trip-free operation
- Arc-resistant case
- For overload and short circuit protection
Description
Description
Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2 in wide per pole, allows for the reduction of the size and weight of the loadcenter. These breakers are CSA approved to work only in federal pioneer branded residential panel.
Additional Information
Additional Information
- Actuator Type: Magnetic Thermal
- Color: White
- Current Rating: 15 A
- Dimensions: 0.5 in W x 3 in D x 3.4 in H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Poles: 1
- Number Of Spaces: 2
- Operating Temperature: 40 deg C
- Terminal Type: Lug
- Type: Mini Type NC
- Voltage Rating: 120 V
- Wire Size: 14 to 6 AWG
