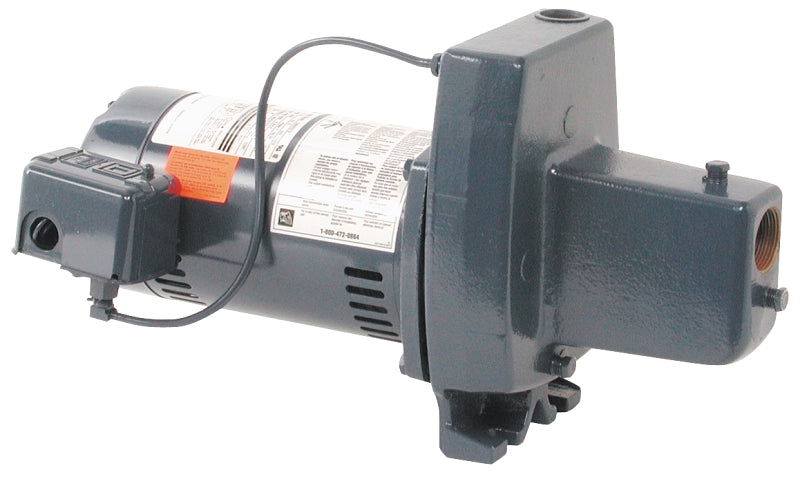

Sta-Rite FSNCH-L Jet Pump, 9.9/4.95 A, 115/230 V, 0.5 hp, 1-1/4 in Suction, 1 in Discharge Connection, Iron

Built-in shallow well jet has corrosion-resistant nozzle, venturi and check valve. Close-grained cast iron pump body and base. Built-in check valve to prevent accidental loss of prime. Dustproof cover to protect all electrical components from dust and insects. Motor features stainless steel shaft, heavy-duty ball bearings, balanced rotor and insulated motor windings. Pre-set, pre-wired pressure switch for automatic operation when used with water system tank. Top or side discharge-simplifies installation. 1-1/4 in NPT suction and 3/4 in NPT discharge. Dual voltage 115/230 V, factory set at 230 V. Wiring diagrams are permanently affixed on each motor for easy field change to 115 V. Pressure switch setting 30 to 50. CSA certified.
Unit: EA
UPC: 022315110250
Model Number: FSNCH-L

• Connection Size: 1-1/4 in Suction 1 in Discharge
• Connection Type: NPT
• Current Rating: 9.9/4.95 A
• HP Rating: 0.5 hp
• Material: Iron
• Suitable for: Shallow Wells
• Voltage Rating: 115/230 V
