Tapcon | Our Item #:
DORG6419287
13% off

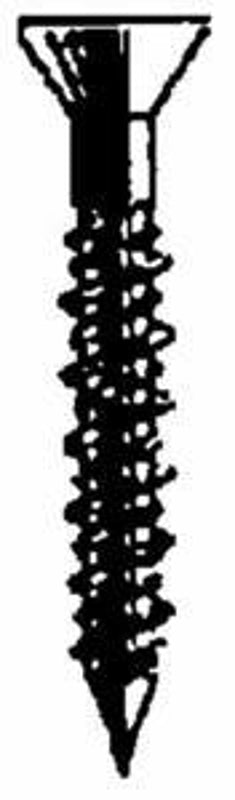

Tapcon 3130 Concrete Screw Anchor, 3/16 in Dia, 2-1/4 in L, Stainless Steel, Climaseal, 100/BX
$32.56
$37.55
Unit price
/
Unavailable
Shipping calculated at checkout.
Tapcon 3130 Concrete Screw Anchor, 3/16 in Dia, 2-1/4 in L, Stainless Steel, Climaseal, 100/BX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Features
- Fast installation, just drill a hole and drive an anchor
- Replaces small diameter expansion anchors, plugs and screws in light to medium duty applications
- No need to pre-spot holes and no inserts are required
- Reversible and removable, can be installed close to an edge
- Compatible for use in ACQ treated wood
- 3/16 in Dia uses a #2 Phillips flat head (PFH)
- Climaseal coating is standard on all Tapcon anchors to provide extended corrosion resistance
- Advanced Threadform Technology cuts into masonry materials for greater pullout values
- Nail-type point guides the anchor into the pre-drilled hole and excellent for wood to concrete applications
- Phillips flat head style is available when flush seating is necessary in countersink applications
Description
Description
The original masonry anchor that cuts its own threads into concrete, brick or block. Maximum performance is achieved because the Tapcon anchor, the condrive installation tool and the carbide-tipped Tapcon drill bits are designed to work as a system. It is essential to use the condrive tool and the correct drill bit to assure consistent anchor performance.
Additional Information
Additional Information
- Color: Blue
- Diameter: 3/16 in
- Drill Size: 5/32 x 4-1/2 in
- Finish: Climaseal
- Fixture Thickness: 1/2 to 1-1/4 in
- Head Type: Flat Phillips
- Length: 2-1/4
- Material: Stainless Steel
- Minimum Embedment Depth: 1 in
- Shear Strength: 400 to 730 lb
- Tensile Strength: 220 to 340 lb
