Wayne | Our Item #:
DORG6243224
13% off

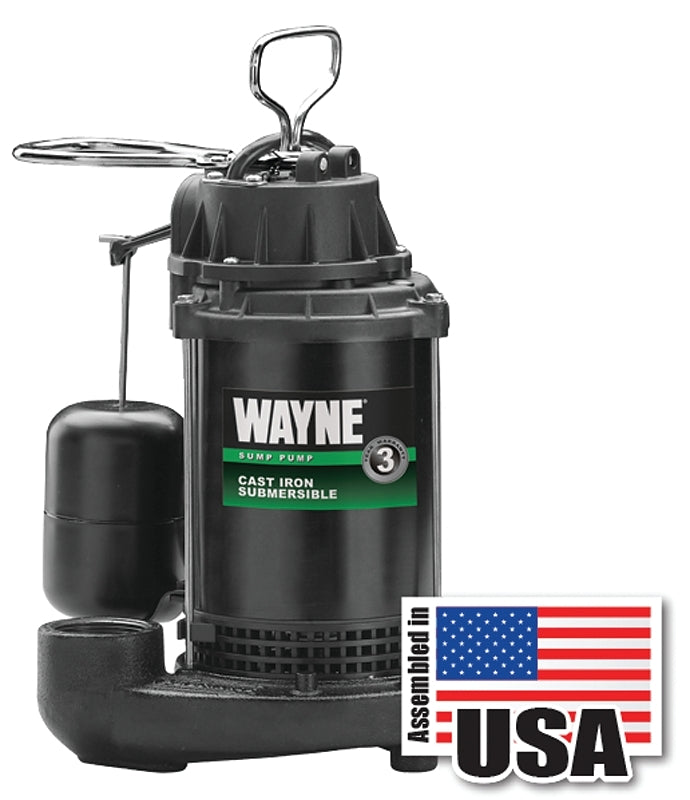

Wayne CDU790 Sump Pump, 1-Phase, 9.5 A, 120 V, 0.33 hp, 1-1/2 in Outlet, 20 ft Max Head, 1200 gph, Iron
$196.11
$225.59
Unit price
/
Unavailable
Shipping calculated at checkout.
Wayne CDU790 Sump Pump, 1-Phase, 9.5 A, 120 V, 0.33 hp, 1-1/2 in Outlet, 20 ft Max Head, 1200 gph, Iron is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Wayne CDU790 Sump Pump, 1-Phase, 9.5 A, 120 V, 0.33 hp, 1-1/2 in Ou...
$196.11
$225.59
Unit price
/
Unavailable
Features
- Submersible cast iron and coated steel sump pump with vertical float switch
- 9 in On level and 4 in off level
- Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit
- Fully submersible
- 1-1/2 in NPT discharge for standard plumbing installation
- Durable construction materials
- Maximum flow rate is 3800 gph and 2700 gph at 10 ft of discharge lift
- Vertical float switch for automatic operation
- Top suction Design filters debris and prevents clogging
- Designed for easy installation without any plumbing changes
Description
Description
1/3 hp cast iron and coated steel submersible sump pump. Assembled in the US with foreign and domestic parts. Float switch tested to 1 million cycles. Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit. Epoxy-coated steel motor housing and rugged, cast iron pump base. Fully submersible. 1/3 hp, max flow rate is 3800 gph at 0 ft 1-1/2 in. NPT discharge. For use in 11 in. diameter or larger sump basins, 9 in ON level and 4 in OFF level.
Additional Information
Additional Information
- Cord Size: 8 ft
- Current Rating: 9.5 A
- Dimensions: 11-1/2 in H
- Flow Rate: 1200 gph
- Frequency Rating: 60 Hz
- HP Rating: 0.33 hp
- Material: Iron
- Maximum Head: 20 ft
- Number of Phases: 1
- Outlet Connection Size: 1-1/2 in
- Suitable for: 22 in H x 11 in Dia Basin Sumps
- Temperature Rating: 40 to 120 deg F
- Voltage Rating: 120 V
