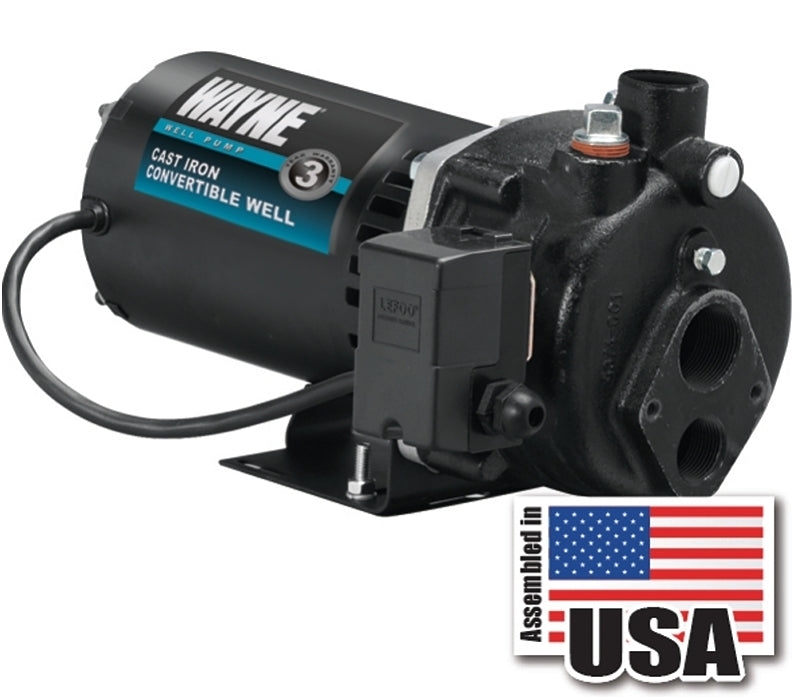

Wayne CWS75 Jet Well Pump, 120/240 V, 0.75 hp, 1-1/4 in Suction, 3/4 in Discharge Connection, 90 ft Max Head, 462 gph
$384.54
$442.29
Unit price
/
Unavailable
Shipping calculated at checkout.
Wayne CWS75 Jet Well Pump, 120/240 V, 0.75 hp, 1-1/4 in Suction, 3/4 in Discharge Connection, 90 ft Max Head, 462 gph is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Policy - Free Shipping On Orders of $75 Or More. Arrives in 3 to 7 Business Days.
Wayne CWS75 Jet Well Pump, 120/240 V, 0.75 hp, 1-1/4 in Suction, 3/...
$384.54
$442.29
Unit price
/
Unavailable
Features
- Dual voltage (120/240 V) high efficiency square flange motor (factory set for 240 V)
- Pressure switch is pre-set at 30-50 psi for automatic operation
- Durable cast iron volute with dedicated priming port for volute filling
- For wells 0 - 90 ft in depth
- Jet assembly required
Description
Description
Jet pumps are single-stage domestic water pumps designed for pumping potable water in applications where the water is up to 100 ft below pump center line. A pressure switch is a standard feature. A built-in control valve is available on deep well pumps. Deep well pumps can be mounted to either a pre-charged, conventional type or free- standing pressure tank.
Additional Information
Additional Information
- Connection Size: 1-1/4 in Suction 3/4 in Discharge
- Connection Type: NPT
- Flow Rate: 462 gph
- Frequency Rating: 60 Hz
- HP Rating: 0.75 hp
- Material: Iron
- Maximum Head: 90 ft
- Motor Type: Dual Voltage
- Pressure Rating: 50 psi
- Suitable for: 0 to 90 ft Depth Wells
- Voltage Rating: 120/240 V
