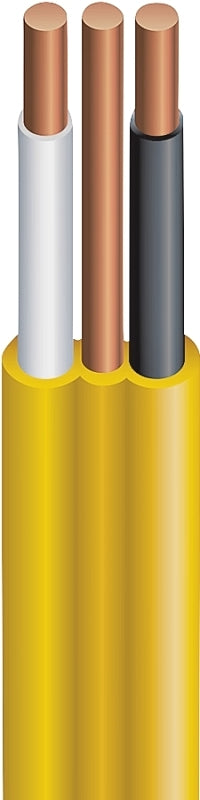

WIRE BUILD 12/2NM WGX50 FT 20A

Inner conductors are type THHN, rated 90 degrees Celsius, 600 volt. Solid strands. Outer jacket is PVC, rated at 75 degrees Celsius. Amp rating of the product is limited to that for 60 degrees Celsius rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings, and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL Listed. /2 = 2 insulated wires with bare ground. /3 = 3 insulated wires with bare ground.

• Conductor Insulation: PVC
• Conductor Material: Copper
• Current Rating: 30 A
• Length: 50 ft
• Number of Conductors: 2
• Operating Temperature: 90 deg C
• Package Type: Box
• Sheath Color: Yellow
• Sheath Material: Nylon
• Stranded/Solid: Solid
• Strands per Conductor: 1
• Type: NM-B
• Voltage Rating: 600 V
• Wire Size: 12 AWG
